22 kg · Essence Graphite

22kg Top Load Washer with AI Wash and Automatic Dispenser

TX2522AT9GR

The angled front helps you reach laundry at the bottom of the drum. AI fabric sensing applies to loads under 5 kg.

AI Wash with AI DD™
TurboWash™
Automatic Dispenser
EasyUnload™
Steam Allergy Care
LG ThinQ™ Wi-Fi

RENTAL

7 Years Combine Maintenance

Self-service every 6 months; service visit every 12 months

RM 80/monthRM 40/month

7 Years Regular Visit

Service visit every 6 months

RM 90/monthRM 45/month

5 Years Combine Maintenance

Self-service every 6 months; service visit every 12 months

RM 100/monthRM 50/month

5 Years Regular Visit

Service visit every 6 months

RM 110/monthRM 55/month

Subscription eligibility applies.

Final approval is subject to document and credit assessment. Applicants with unresolved adverse credit records may not qualify. Our agent will confirm the next steps before any order is submitted.

Have questions? Chat with us

Ask about eligible RM10/month plans for multiple products or existing subscribers.
Monthly discounts cannot be combined unless the offer states otherwise.

See pricing for:

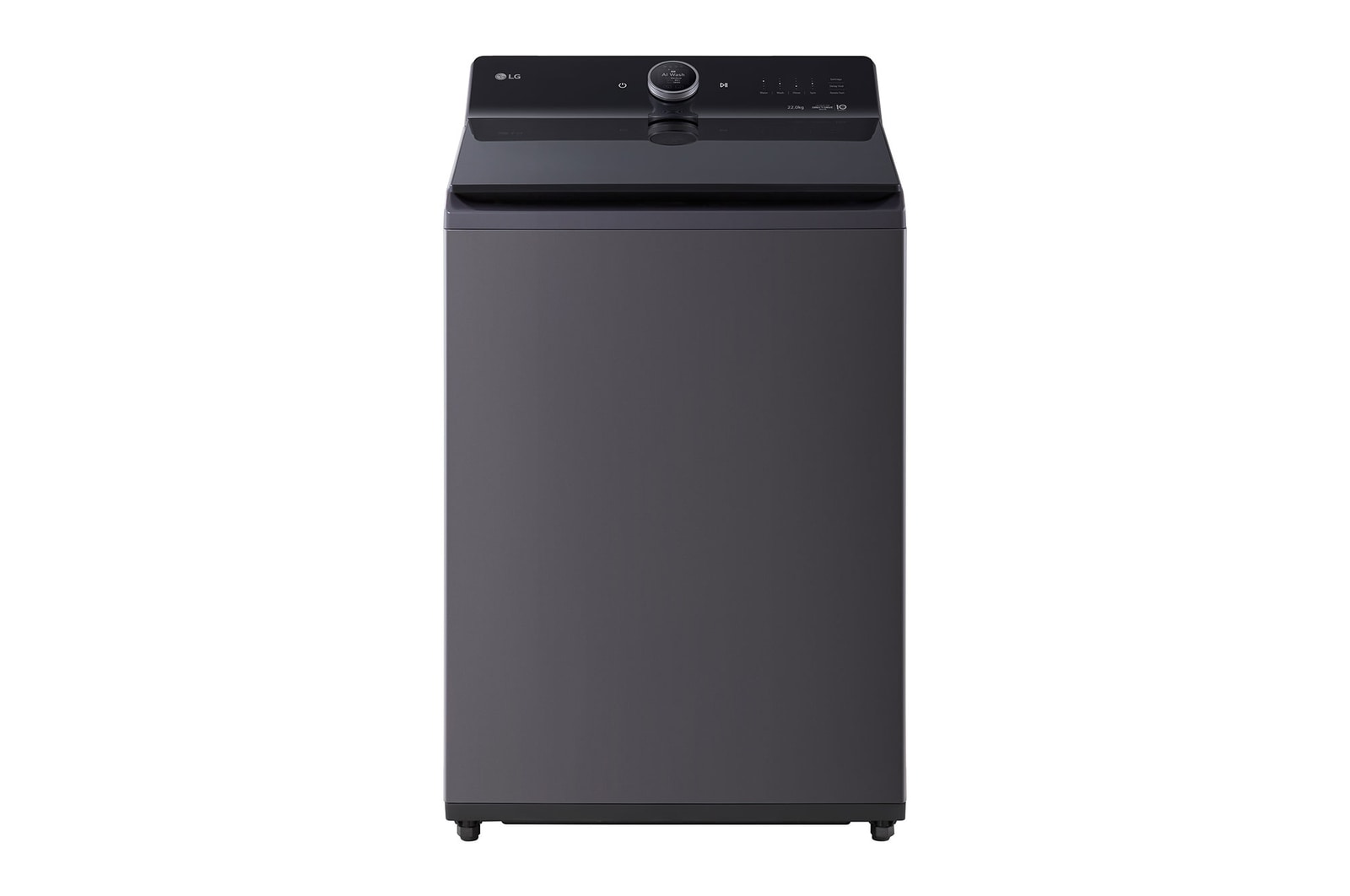

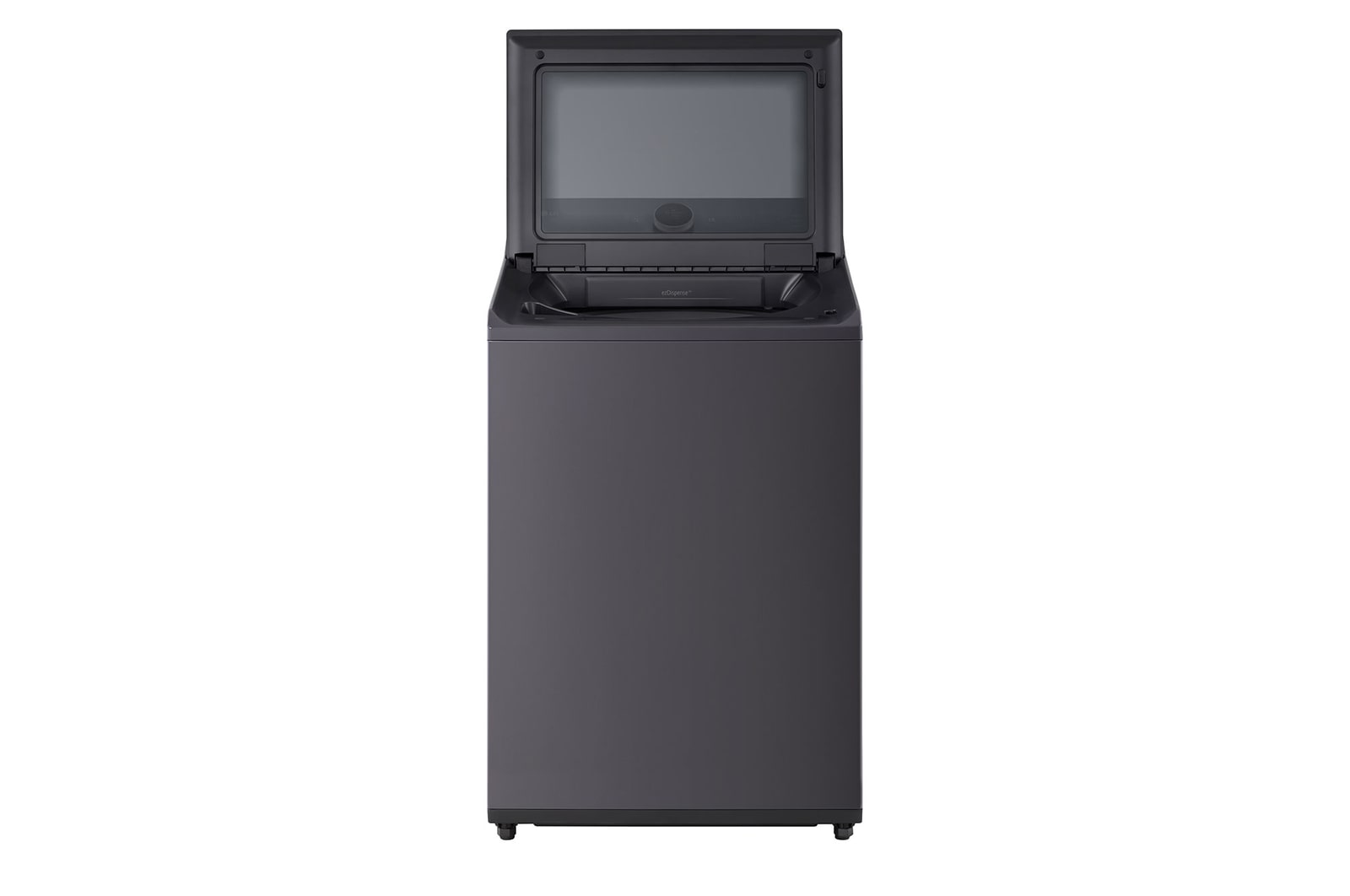

LG TX2522AT9GR 22 kg top load washer in Essence Graphite - Image 1

Room for the family’s laundry

A 22 kg drum and controls within easy reach.

AI Wash

Fabric-aware washing motions

TurboWash™

30-minute wash for a tested 3 kg load

EasyUnload™

An angled front for easier reach

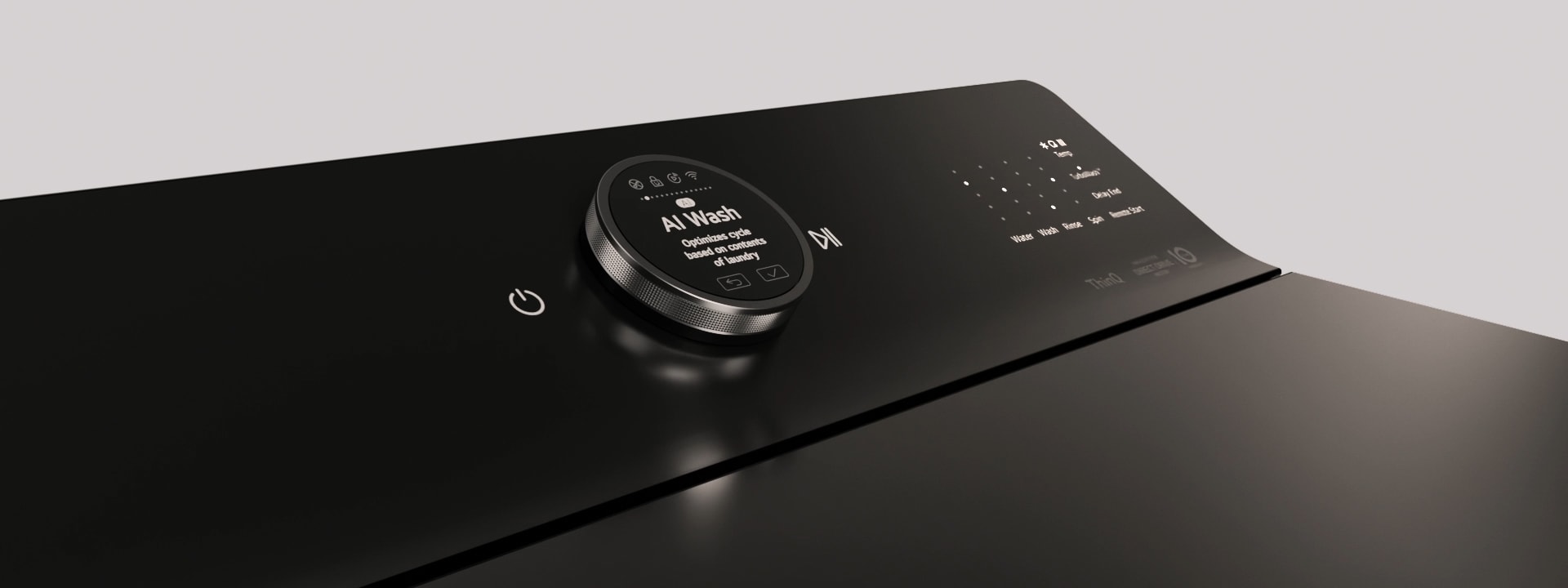

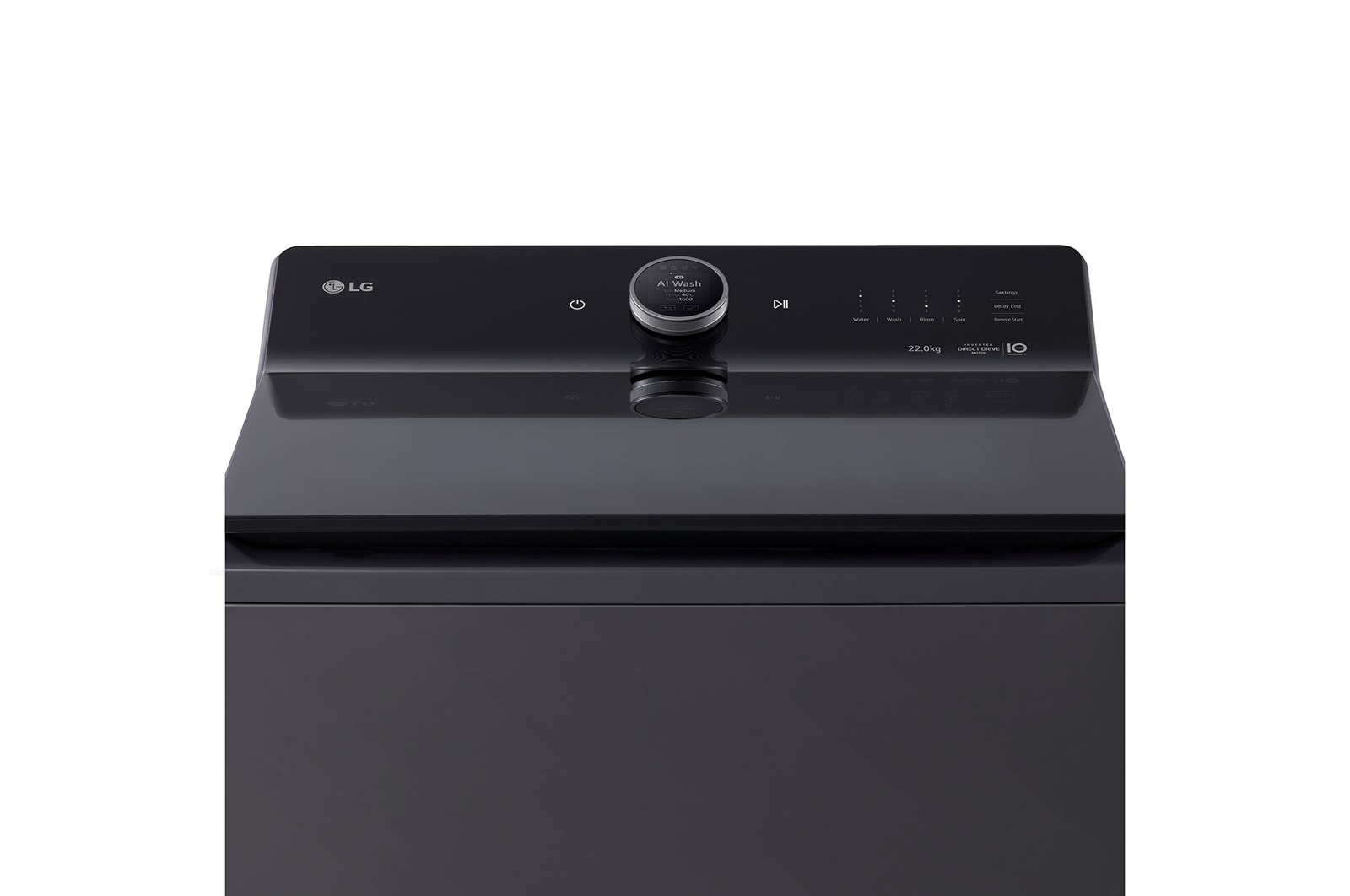

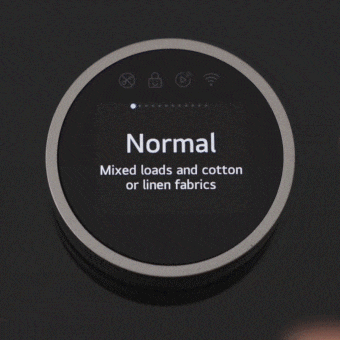

Easy Control

LCD dial and touch controls

AI Wash

Washing motions suited to your fabrics

AI DD™ adjusts the wash motion after sensing load weight and fabric softness.

AI sensing operates only in the AI Wash cycle for loads under 5 kg. Use similar fabric types and suitable detergent; not every fabric is detected.

6 Motion™

Six ways to move your laundry

The Inverter Direct Drive motor uses six washing motions to care for and clean clothes.

agitating

swing

rotating

rubbing

power

compressing

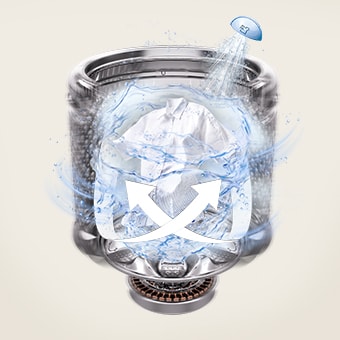

TurboWash™

A 30-minute wash for smaller loads

TurboWash combines pulsator movement, TurboDrum water flow and JetSpray rinsing.

LG TurboWash 30-minute wash illustration

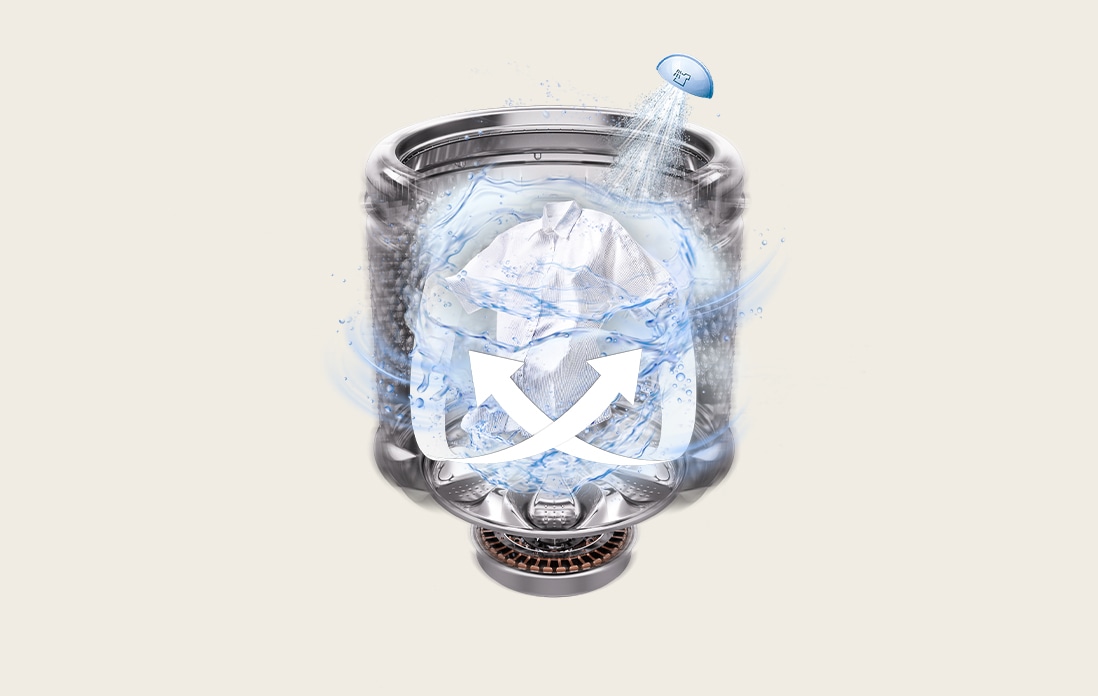

Stronger pulsator movement

The pulsator moves laundry through the water for thorough washing.

Tested by Intertek in November 2024 with a 3 kg IEC load on the Normal cycle with TurboWash selected. Actual wash time and performance vary with the load and environment.

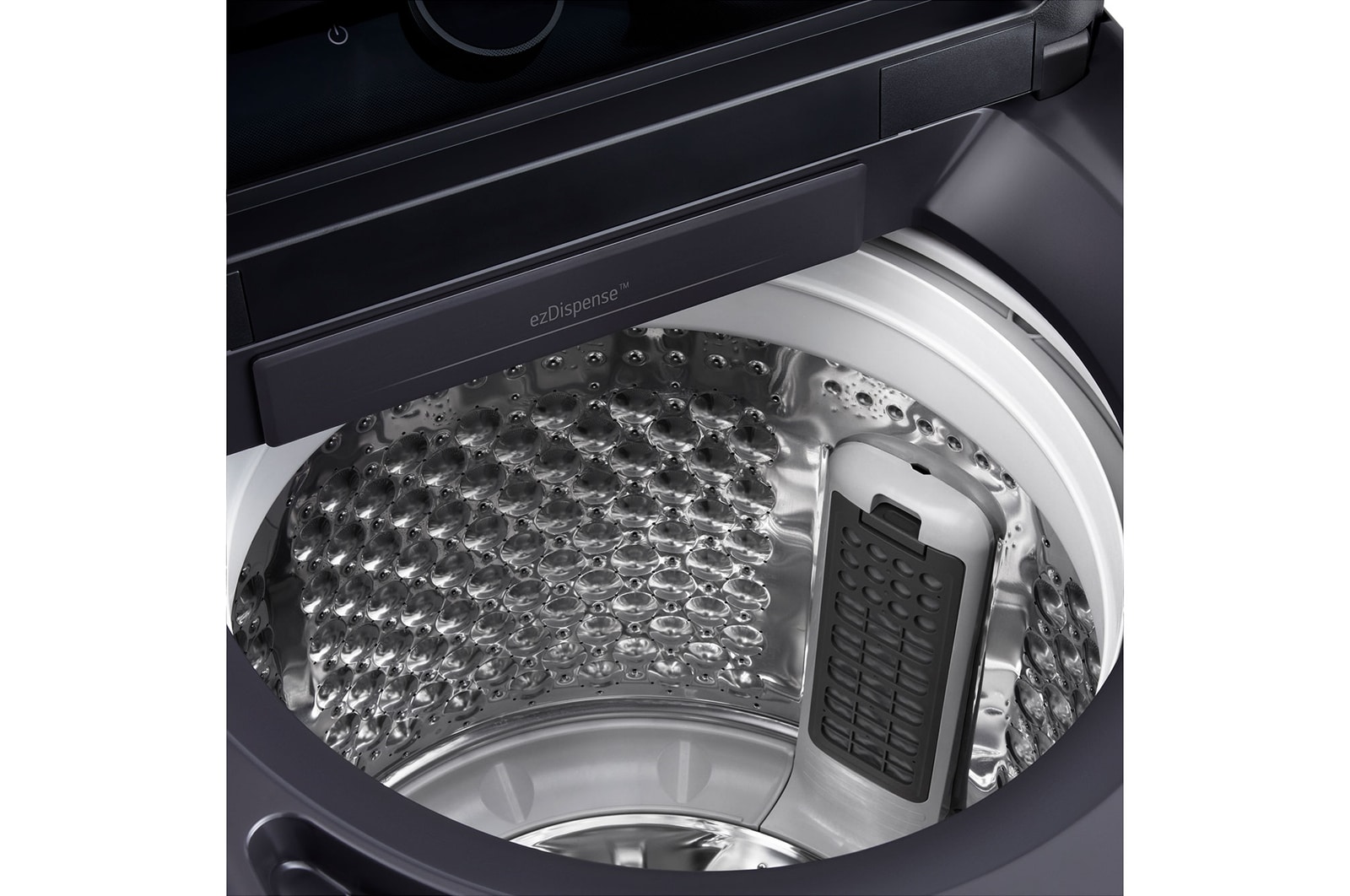

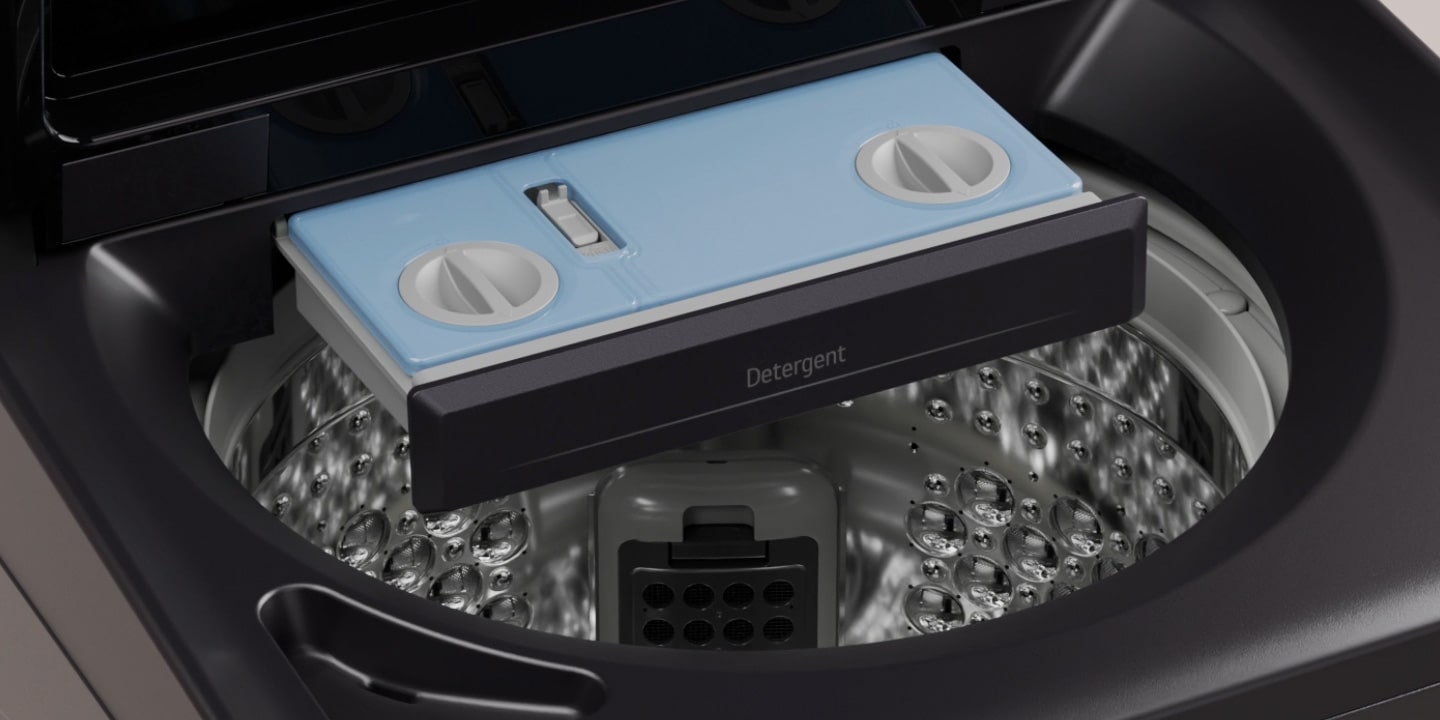

Automatic Dispenser

Refill once for several washes

The dispenser automatically supplies detergent and softener. LG ThinQ can notify you when a refill is due.

Up to 15 washes when both compartments are filled with detergent (700 ml + 400 ml), based on a default 60 ml dose. Actual use varies. Refill notifications require Wi-Fi and the LG ThinQ app.

EasyUnload™

An easier reach into the drum

The angled front helps you reach clothes at the bottom while retaining the 22 kg capacity.

Cycle and option optimisation

Keep your frequent cycles close

Use Cycle List Edit to organise the cycles you use most often.

Steam

Allergy Care with steam

The Allergy Care cycle uses steam to treat laundry.

Intertek testing found a 97% reduction in house dust mite allergen (Der p1) and a 99.9% reduction in live dust mites (Dermatophagoides pteronyssinus). Results vary with clothes and environment.

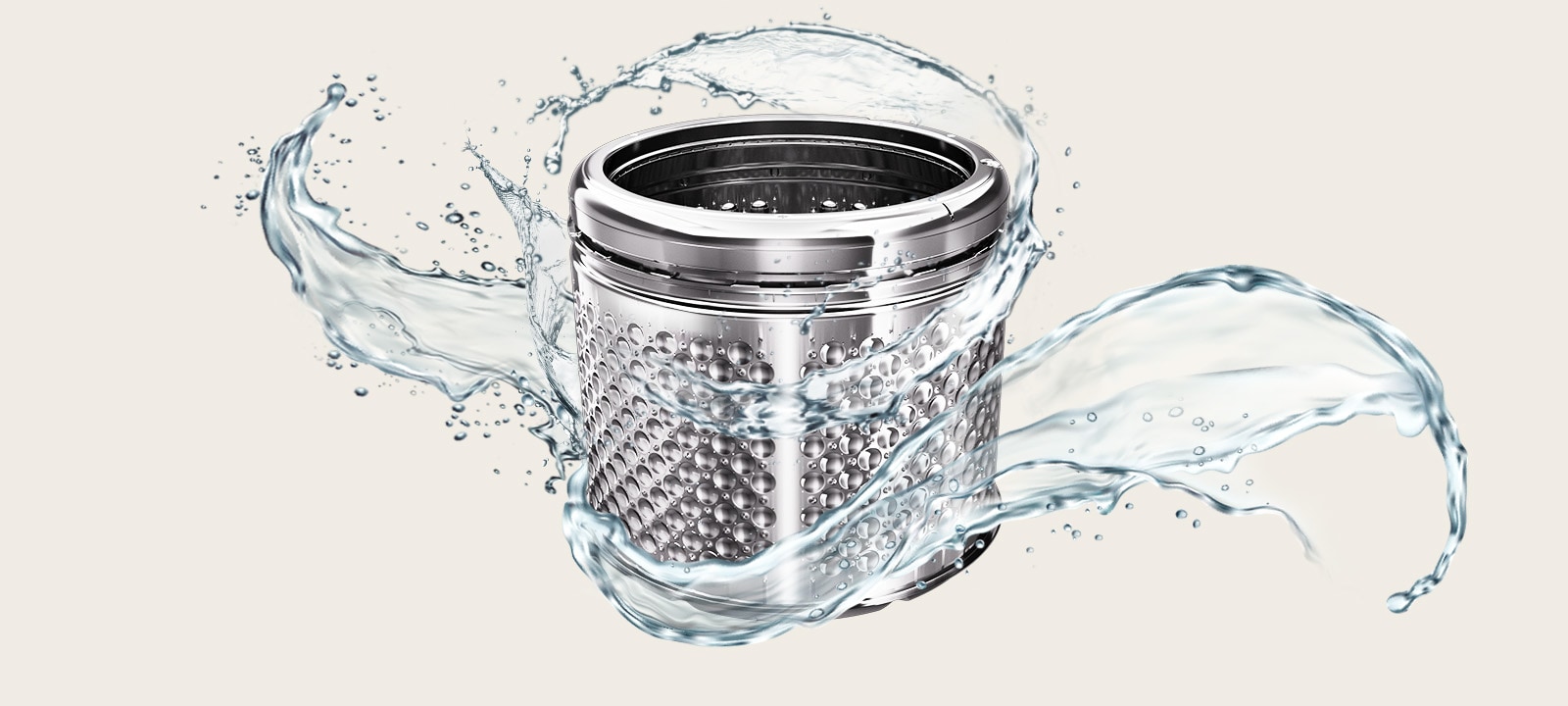

Tub Clean

Care for the inside of your washer

The Tub Clean cycle helps clean the inner and outer tubs. LG recommends running it about once a month.

LG ThinQ™

Stay connected to your laundry

Start a load from your phone

Connect the washer to the LG ThinQ app to use remote start and check the wash cycle.

A compatible phone, Wi-Fi connection and LG ThinQ app are required. Smart-home and voice-assistant support varies by country and setup.

Design

Details for everyday use

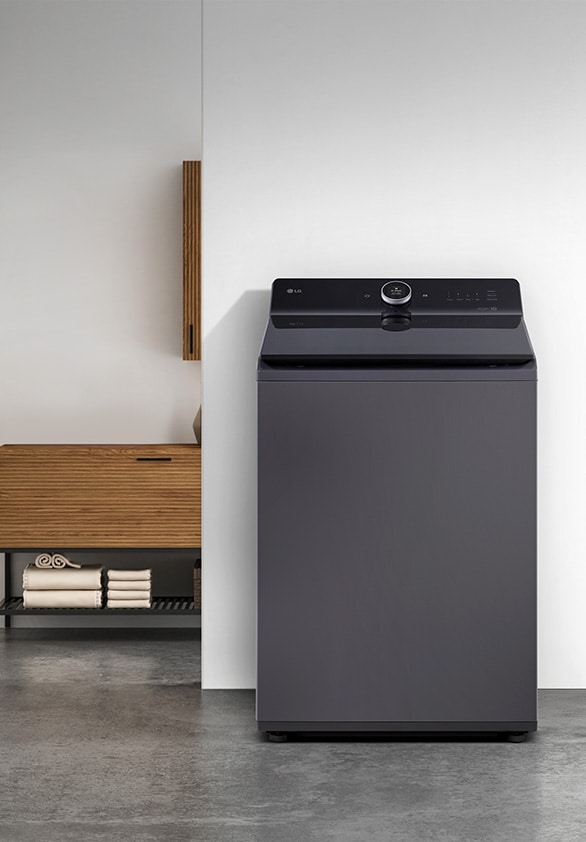

Essence Graphite finish

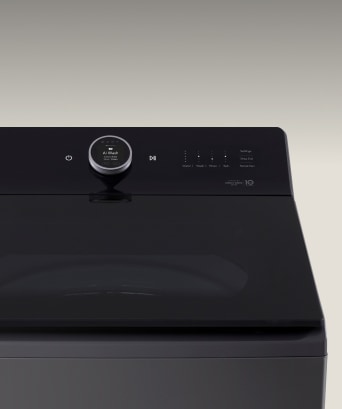

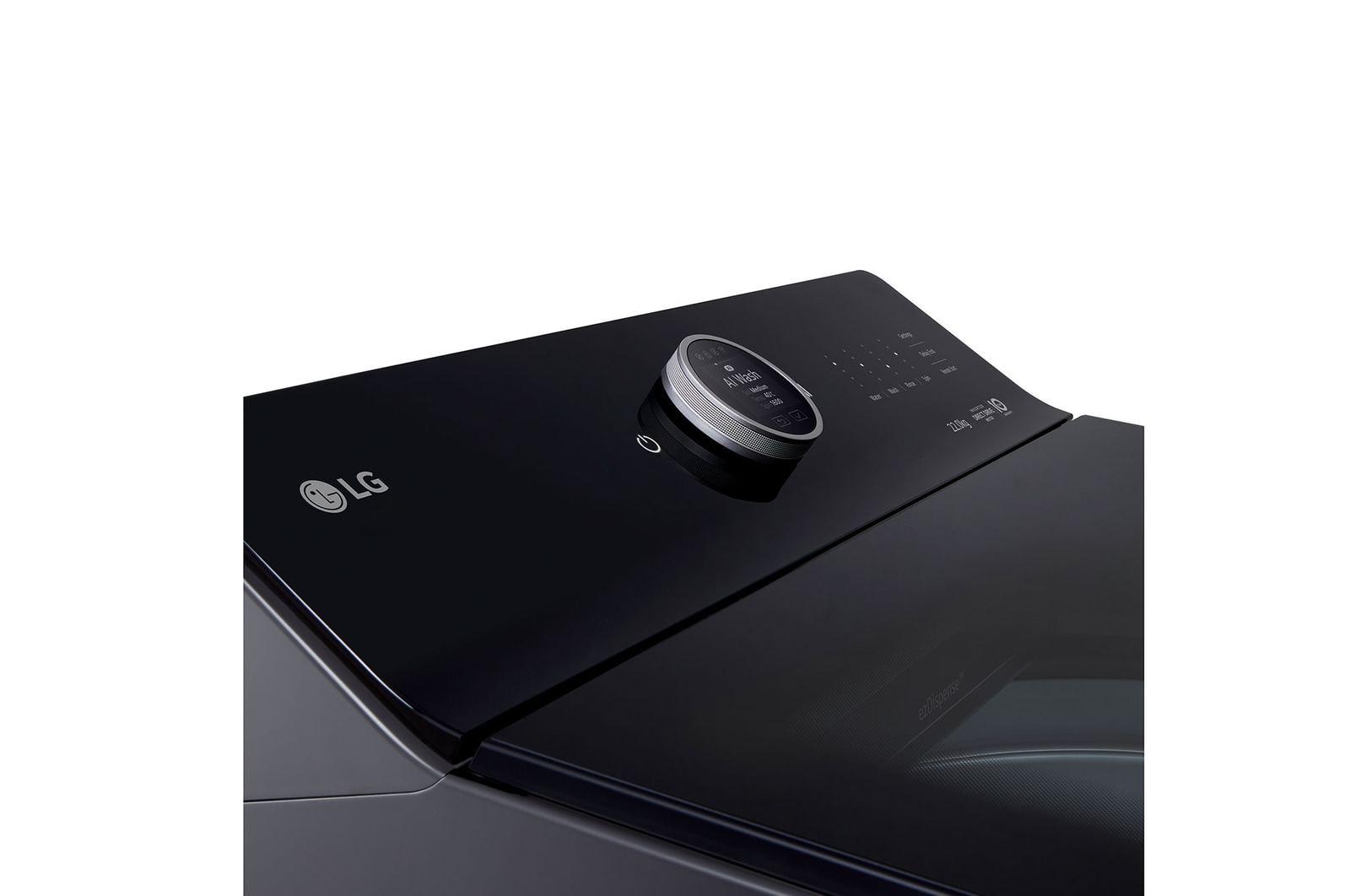

LCD dial and touch controls

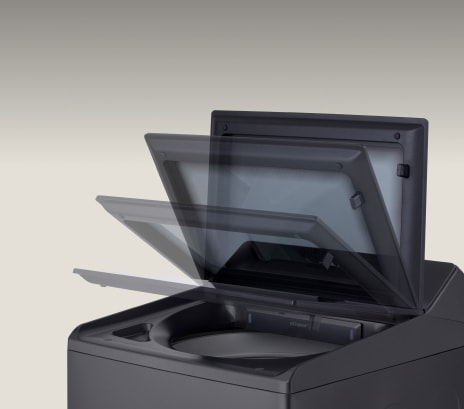

Soft-closing tempered-glass lid

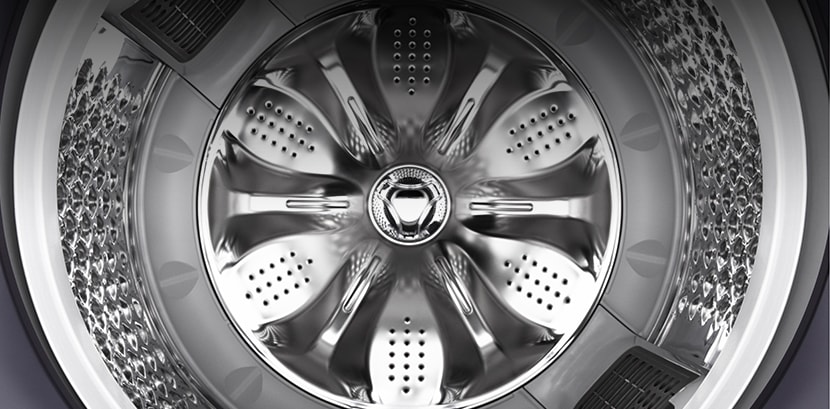

Stainless-steel drum

Inverter Direct Drive

Inverter Direct Drive motor

LG direct-drive washer and AI DD motor illustration

Feature demonstrations are illustrative; the product shown can differ from the supplied model.

Dimensions and key specifications

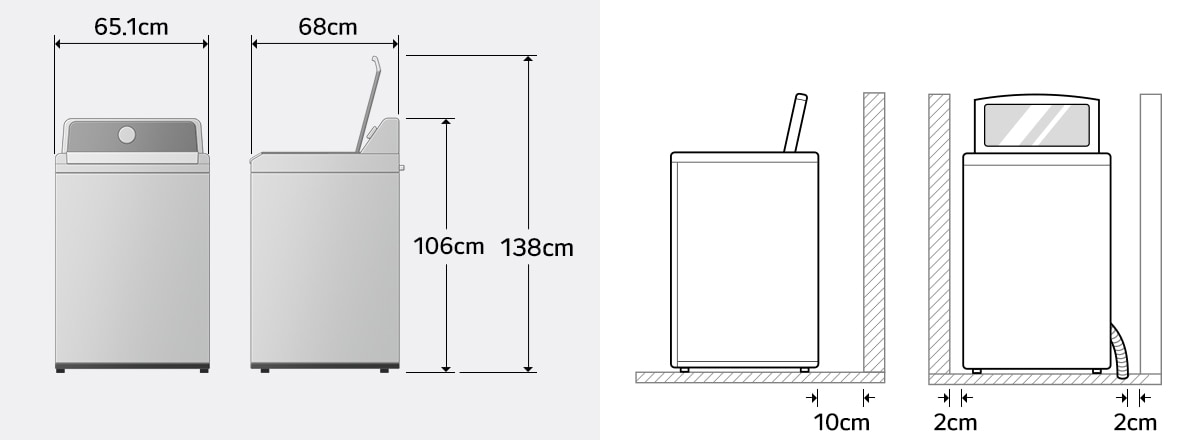

651 mm width, 1060 mm height, 680 mm depth and 1380 mm height with lid open

Wash capacity: 22 kg
Colour: Essence Graphite
Dimensions (W × H × D): 651 × 1060 × 680 mm
Height with lid open: 1380 mm
Product weight: 50 kg
Water inlet: Cold only

All specifications

MATERIAL & FINISH

Body Color: Essence Graphite
Lid Type: Tempered Glass

CAPACITY

Max Wash Capacity(kg): 22

CONTROL & DISPLAY

Display Type: Dial + Full Touch Buttons & LCD+LED Display
Delay Timer: 3-19 hours
Door Lock Indication: Yes
Figure Indicator: LCD

FEATURES

Type: Top Load Washer
6 Motion DD: Yes
Add Item: No
AI DD: Yes
Auto Restart: Yes
Embossing Inner Drum: Yes
End of Cycle Signal: Yes
ezDispense: Yes
Foam detection system: No
Inverter DirectDrive: Yes
JetSpray: Yes
Leveling Legs: Yes
LoadSense: Yes
Punch + 3: No
Semi Stainless Steel Drum: No
Side Water Fall: No
Soft Closing Door: Yes
Stainless Lint Filter: Yes
Stainless Steel Drum: Yes
Steam: Yes
TurboWash: Yes
TurboDrum: Yes
TurboWash 3D: No
Vibration Sensor: No
Water feed (Hot / Cold): Cold Only
Water Level: Auto/Manual
WaveForce: Yes

PROGRAMS

Normal: Yes
AI Wash: Yes
Allergy Care: Yes
Baby Wear: No
Color Care: No
Delicates: Yes
Download Cycle: No
Drain + Spin: No
Duvet: Yes
Eco Save: No
Extra Clean: No
Microplastic Care: No
Pet Care Wash: No
Pre Wash+Normal: Yes
Quick Wash: Yes
Rinse + Spin: Yes
School Care: No
Small Load: No
Smart Rinse: No
Sportswear: No
Stain Care: Yes
Strong Wave: No
Towels: No
Tub Clean: Yes
Wool: No

ADDITIONAL OPTIONS

Water Level: 10 Levels
Add Item: No
Air Dry: No
Aqua Reserve: No
Child Lock: Yes
Cold Wash: No
Deep Fill: No
Extra Rinse: No
Hot Wash: No
Pre Wash: No
Process On/Off: Yes
Remote Start: Yes
Rinse: 5 Times
Rinse + Spin: No
Soak: Yes
Spin: 5 Levels
Spin Only: No
Stain Care: No
Steam: Yes
Strong Wave: Yes
Temp.: No
Time Delay: No
Tub Clean: Yes
Tub Dry: No
TurboWash: Yes
Wash: Yes
Water Plus: No
Wi-Fi: Yes

SMART TECHNOLOGY

ThinQ(Wi-Fi): Yes
Download Cycle: Yes
Energy Monitoring: Yes
Remote Start and Cycle Monitor: Yes
Smart Diagnosis: Yes
Tub Clean Coach: Yes
Smart Pairing: No

DIMENSIONS & WEIGHTS

Product Dimensions (WxHxD mm): 651 x 1060 x 680
Product Height with Lid Open (mm): 1380
Weight (kg): 50.0

BAR CODE

Bar Code: 8806096746585

Questions about this washer

How much space does this washer need?

The washer measures 651 mm wide, 1,060 mm high and 680 mm deep. Allow 1,380 mm height with the lid open. LG advises at least 10 cm behind and 2 cm at each side, with additional space for the drain hose. Install on a firm, level floor and confirm the final layout before installation.

How do I select a wash cycle?

Press Power, turn the LCD dial to choose a cycle, adjust the available options, then press Start. Follow the care label on your laundry when choosing a programme.

How do I keep the dispenser and filter clean?

Clean the detergent compartment about once a month with a soft brush to remove residue. Clean the lint filter after each load.

When does AI Wash detect fabric softness?

AI sensing works in the AI Wash cycle with loads under 5 kg. Use similar fabric types and suitable detergent. It does not detect every fabric type, so the 22 kg maximum wash capacity is not the AI-sensing load limit.

What does AI DD™ change during a wash?

AI DD™ uses the load weight and detected fabric softness to adjust washing motions in the AI Wash cycle. Its Inverter Direct Drive motor also provides six washing motions.

Does every load finish in 30 minutes?

The 30-minute TurboWash claim was tested by Intertek in November 2024 with a 3 kg IEC load, using the Normal cycle with TurboWash selected. Actual time and performance depend on the load and environment.

How many washes can the automatic dispenser supply?

LG states up to 15 washes when both compartments contain detergent: 700 ml plus 400 ml, based on a default dose of 60 ml. Actual refill timing depends on use. Refill notifications require Wi-Fi and the LG ThinQ app.

What does the Allergy Care cycle do?

Steam helps treat laundry in the Allergy Care cycle. Intertek testing found a 97% reduction in house dust mite allergen (Der p1) and a 99.9% reduction in live dust mites (Dermatophagoides pteronyssinus). Results vary with the fabric and environment.

How often should I run Tub Clean?

LG recommends running Tub Clean about once a month. Use a suitable washing-machine cleaner if the tub has lint build-up or a mouldy smell, and follow the product instructions.

How can I reduce lint on my laundry?

Clean the lint filter after each load and follow the clothing care labels when preparing and sorting laundry. Regularly clean the tub and dispenser as described in the product instructions.
